ORIqube - versatile and resilient design
foldable homes for easy transport and assembly
OriQubes are foldable, stackable and able to be delivered on the back of a standard truck.

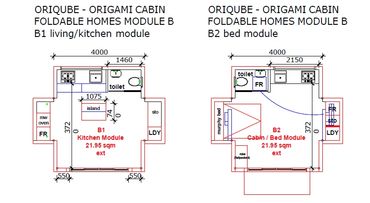

Designed as foldable cabins, each OriQube arrives as a standard 2.3m x 4m cube for easy and swift deployment using smaller trucks. The removal of the size limitations of transporting traditional modular buildings, ensures the OriQubes can be delivered to site quickly in times of crisis.
Self levelling legs mean the OriQubes can be assembled on any site.
OriQubes can be easily folded back to their origi

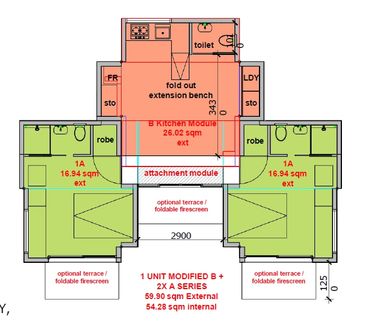

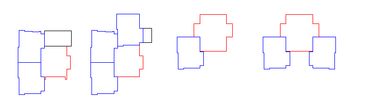

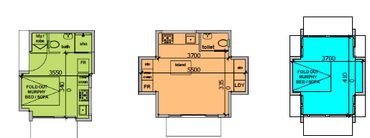

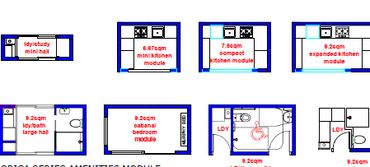

endless configuration options
catalogue available here
RDAB CATALOGUE 2024-4 (pdf)
DownloadBuilt for resilience - on or off the grid
Bushfire Resistant
Bushfire Resistant
Bushfire Resistant
Designed and built to BAL-FZ requirements
Flood Resistant
Bushfire Resistant
Bushfire Resistant
Building materials selected to be flood and water resistant
Cyclone Resistant
Bushfire Resistant
Passive House International Standard
Designed and built in accordance with CAT 5 cyclone standards
Passive House International Standard
Passive House International Standard
Passive House International Standard
Designed to provide insulation in weather extremes requiring minimal heating and cooling
Earthquake Resistant
Passive House International Standard
Earthquake Resistant
Designed to withstand earthquakes

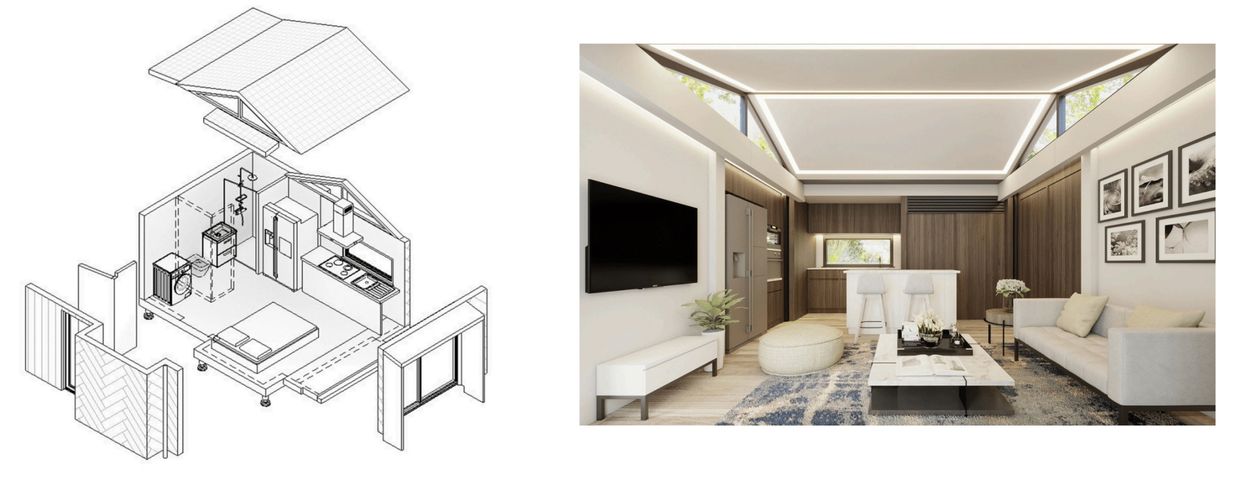

inclusions
- solar panel roofing system, inverter and battery
- integrated roof and rain collection systems fed intoor subfloor bladders
- subfloor bladders for black (bio waste) water, grey water and rainwater collection
- reverse cycle air conditioning
- self levelling hydraulic lifts incorporated into the structure = minimal earthwork required
- installed in one day by non-skilled labour
- recessed LED lighting, slimline powerpoints and switches
- queen size murphy bed, including mattress and bedding
- custom made lounge
- full kitchen cabinetry including soft closing drawers and under cabinet LED lighting
- stone or timber bench tops and under mount 1 1/2 bowl sink with basket drainers
- cutlery, plates, glasses and saucepans
- full size fridge/freezer, under bench microwave/oven, 600mm induction cooktop, range hood and fully integrated single drawer dishwasher
- laundry cabinetry and washing machine/dryer combo
- slip resistant vinyl veneer sheet flooring
- fully tiled bathroom
- wall mounted vanity with mixer tap, LED lighting to the mirrored shaving cabinet above
- full sized shower with rainhead and handheld rose with mixer
- semi frameless shower screens
- grate drain to shower
- exhaust fan
- in-wall 4 star toilet
- optional balcony/awning terrace designed to be collapsible
- TV
oriqubes for every requirement
Homeowners
Emergency Response and Disaster Management
Tourism and Hospitality
Ideal for first home buyers, granny flats, downsizers, growing and extended families, off grid living
Tourism and Hospitality
Emergency Response and Disaster Management
Tourism and Hospitality
Tourist destinations, remote resorts, campsites, eco-lodges as temporary accommodation units or eco-friendly cabins.
Emergency Response and Disaster Management
Emergency Response and Disaster Management
Emergency Response and Disaster Management
Emergency housing, coordination centers, or medical facilities during natural disasters or crises.
Sporting Events and Facilities
Remote Work Accommodation and Co-working Spaces
Emergency Response and Disaster Management
Sports teams, athletic associations, or sporting events for changing rooms, equipment storage, ticketing offices, or temporary accommodation during events or matches
Remote Work Accommodation and Co-working Spaces
Remote Work Accommodation and Co-working Spaces
Remote Work Accommodation and Co-working Spaces
Individuals or companies for flexible office spaces, co-working environments, pop-up offices and accommodation
Outdoor Events and Festivals
Remote Work Accommodation and Co-working Spaces
Remote Work Accommodation and Co-working Spaces
Sporting events, music festivals, art exhibitions, or trade shows for ticket booths, merchandise stands, VIP lounges, artist accommodations, or media centers
Humanitarian Aid and Refugee Camps
Humanitarian Aid and Refugee Camps
Humanitarian Aid and Refugee Camps
Temporary shelters, medical facilities, or administrative centers in crisis-stricken areas
Defence and Military
Humanitarian Aid and Refugee Camps
Humanitarian Aid and Refugee Camps
Military training facilities, temporary barracks or command centers.
Construction and Engineering
Humanitarian Aid and Refugee Camps
Construction and Engineering
Construction companies, contractors, and engineering firms as temporary offices, on-site accommodations, or project management facilities.
Education
Film and Entertainment Industry
Construction and Engineering
Schools, colleges, and universities as temporary classrooms, study spaces, faculty offices, or even student accommodations.
Research and Exploration
Film and Entertainment Industry
Film and Entertainment Industry
Scientific research organizations, environmental agencies, or exploration teams as field stations, laboratories, or base camps in remote or challenging terrains
Film and Entertainment Industry
Film and Entertainment Industry
Film and Entertainment Industry
Film productions, TV shows, or commercials for temporary sets, production offices, dressing rooms, green rooms and accommodation
Mobile Healthcare and Telemedicine
Mobile Healthcare and Telemedicine
Mobile Healthcare and Telemedicine
Self-leveling features, and fire-retardant qualities make it suitable for mobile healthcare clinics, telemedicine facilities, or medical outreach programs.
Agriculture and Farming
Mobile Healthcare and Telemedicine
Mobile Healthcare and Telemedicine
Farms, agricultural research centers, or agri-tourism sites as on-site offices, storage facilities, or accommodation for workers.
Contact us to discuss your OriQube needs
email: hello@rdab.com.au
Phone: 1300 55 75 85
